PRY-8D Gathering and Book Saddle Stitching and Trimming Machine

PRY-8D Gathering and Book Saddle Stitching and Trimming Machine
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine
基本情報
起源の場所: 中国
ブランド名: PRINTYOUNG
証明: CE
モデル番号: Pry-8d
最小注文数量: 1セット
価格: US 92000 Set
パッケージの詳細: 長距離の道路輸送やさまざまな種類の気象条件に適した湿気防止および衝撃防止パッケージを採用しています。メンテナンスおよび操作マニュアルの完全なセットが含まれています。
受渡し時間: 60日
支払条件: L/C、T/T
供給の能力: 月額30セット/セット
接触
最大形式: 440 * 300 mm 最小形式: 148 * 100 mm
ダブルコピーの本の最大形式: 217 * 300 mm ダブルコピーブックの最小形式: 135 * 100 mm
バウンドブック製品の最大厚さ: 8 mm 機械の総電源: 18キロワット

PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 0
PRY-8D Gathering and Saddle Stitching and Trimming Machine
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 1
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 2
Features

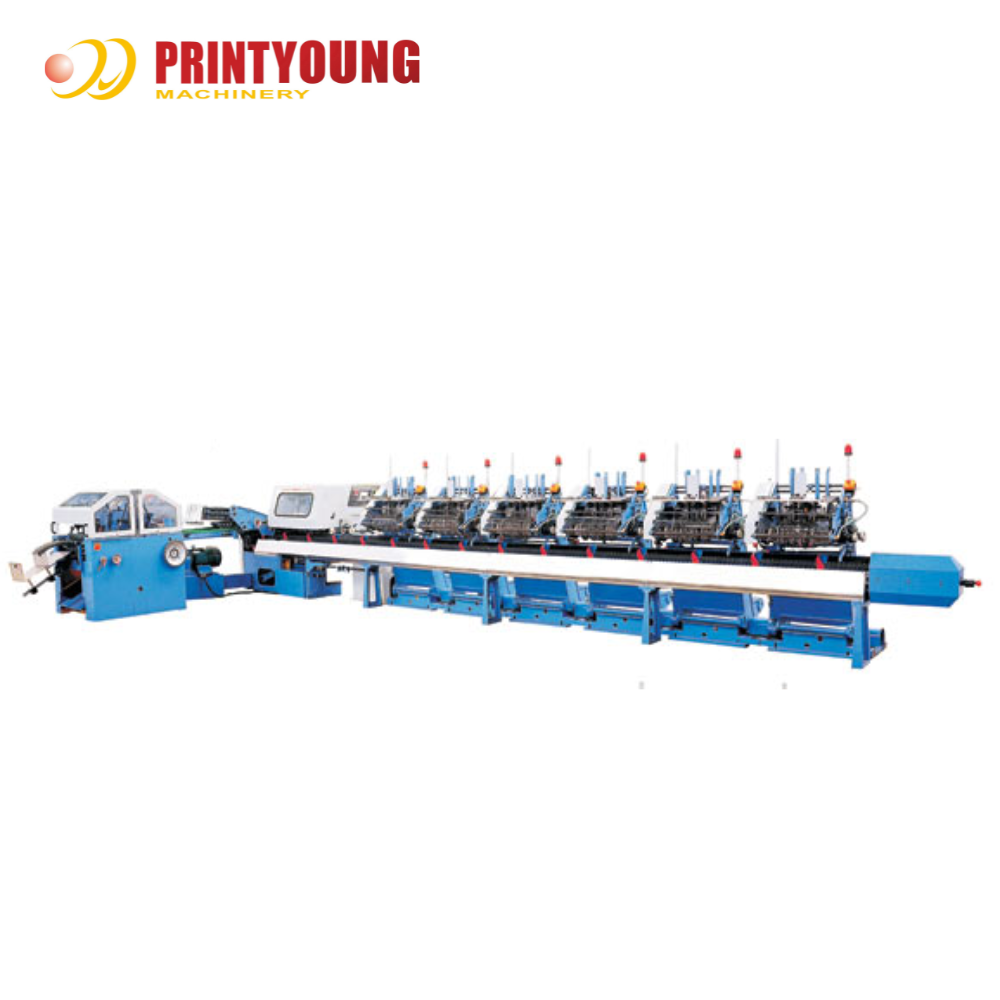

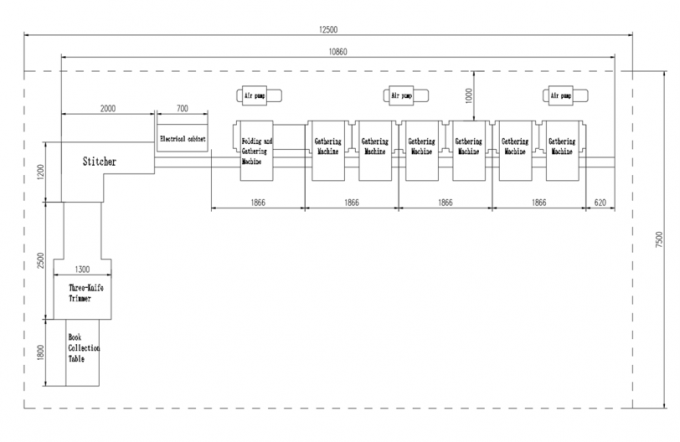

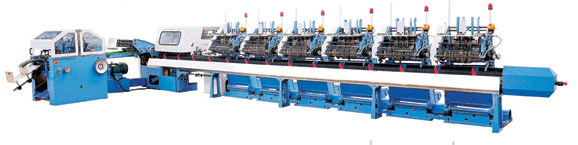

The PRY-8D saddle stitching line consists of a gathering machine,a saddle stitcher(with detection mechanism),a three-knife trimmer,a book collection cart,and an electrical control box.The saddle stitching line offers high speed,low cost,and reliable performance.The binding process is controlled by PLC and sensors,which detect and track defective books (missing or extra pages)and automatically sort them,ensuring a high level of automation.
Technical Parameters
Maximum Format
Before Cutting
450 * 311 mm
After Cutting
440 * 300 mm
Minimum Format
Before Cutting
158 * 111 mm
After Cutting
148 * 100 mm
Maximum Format of Double-Copy Book
After Cutting
217 * 300 mm
Minimum Format of Double-Copy Book
After Cutting
135 * 100 mm
Maximum Thickness of Bound Book Products

8 mm
Total Machine Power

18 kw
Maximum Mechanical Speed

10000 r/h
Configuration

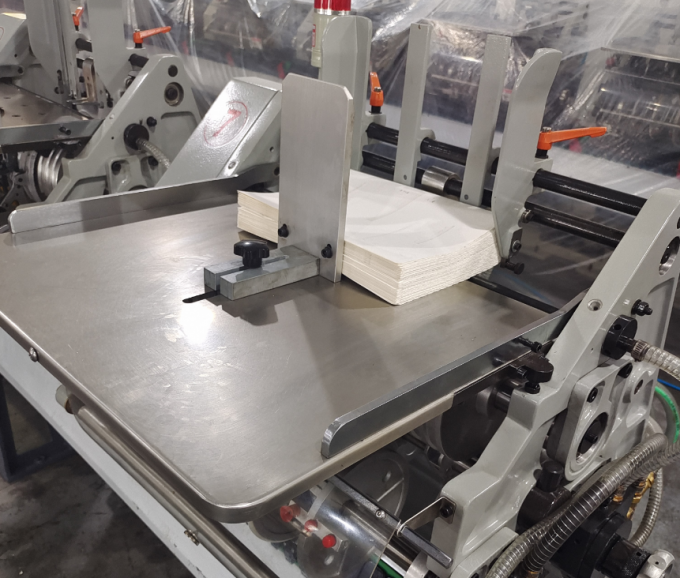

Gathering Machine

1.It has production mode selection switches for 1:1 and 1:2,as well as an empty position selection switch,which is convenient for adjustment.
2.It is equipped with safety and fault signal lights,start/stop buttons.
3.The gathering machine adopts a double gripper structure,which improves the stability of machine operation.
4.It uses multiple suction nozzles for paper feeding,ensuring the stability of booklets falling,and is suitable for booklets of different specifications.
5.A cam is used to control the air pressure and time,enabling each booklet to fall accurately
6.The gripper mechanism of the gathering machine has been improved.A groove cam torsion spring opening gripper device is adopted,making the gripper mechanism durable. Coupled with wear-resistant synthetic rubber pads,the conveying force of the gripper on the booklets is enhanced.
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 3PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 4PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 5

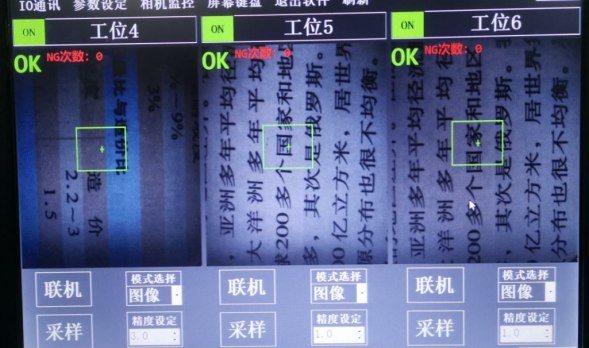

Graphic Detection System(optional configuration)

This system is designed to compare printed text on paper to determine if book placement is incorrect, triggering an audible and visual alarm and stopping the gathering machine or ejecting the defective book.
System Features:
1.Automatically starts when the device is powered on,automatically setting the correct text template without manual operation.
2.Accurately creates templates for book pages with different colors and no printed text, adjusting recognition accuracy based on paper color differences to maximize accuracy.

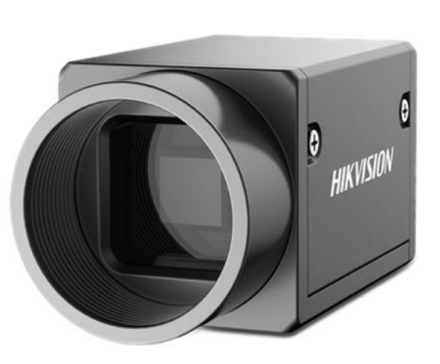

3.High-speed industrial-grade camera for clearer images and faster capture.
4.Integrated image recognition system with a dust-proof industrial host,compact size,easy installation,and equipped with an Intel Core i3 7th Gen processor,6 Gigabit Ethernet ports, and 24-hour zero-fault operation.
5.Multiple control modes:stop mode,auto-reset mode,and eject mode to meet different equipment requirements.
6.Touchscreen Chinese interface,easy to understand.

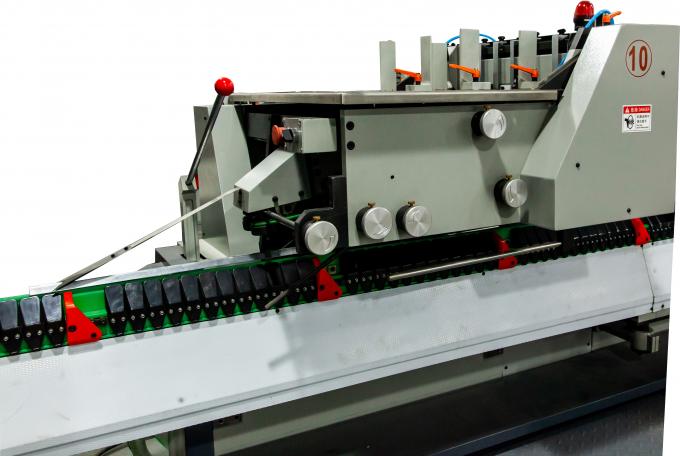

Folding and Gathering Machine

1.Base is integrally cast for increased stability.
2.New gripper system with easy adjustment for stable paper drop.
3.Equipped with start/stop buttons and a unified air valve adjustment function for easy operation.
4.Features missing or extra page detection.
Binding Range:
-Maximum size:610×440mm
-Minimum size:220×155mm
-Maximum mechanical speed:10,000 r/h
-Common paper weight:120-220 g/m²
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 6PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 7

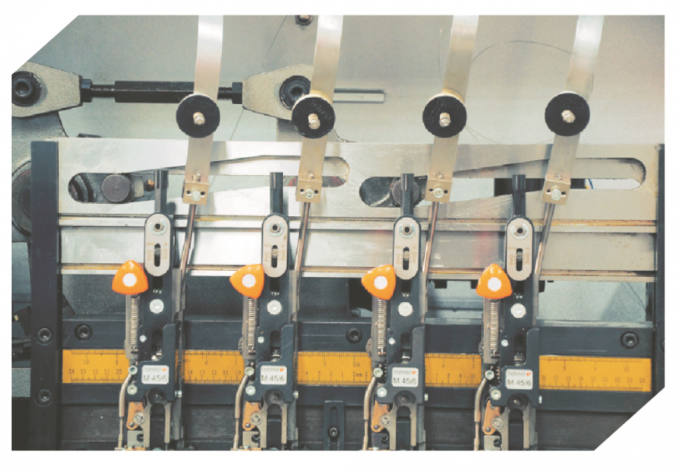

Stitcher

1.Comes standard with two German Hohner 45/6 stitching heads.
2.Can be equipped with 2 to 4 Hohner M45/6 stitching heads.
3.Sensitive detection function to eject defective products with missing or extra pages or blockages.
4.Ensures stable and reliable binding quality.

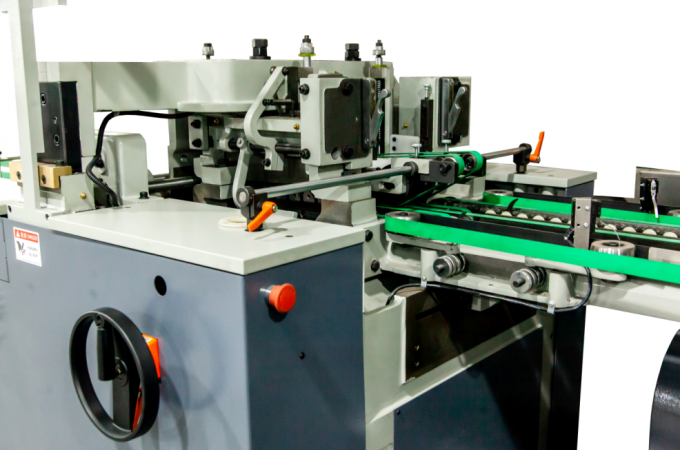

Three-Knife Trimmer

1.Box body is integrally cast.
2.Handwheel with scale for adjusting book size.
3.Paper jam stop function.
4.High-quality cutting blades ensure cutting quality.
5.Centralized oil supply system.
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 8PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 9

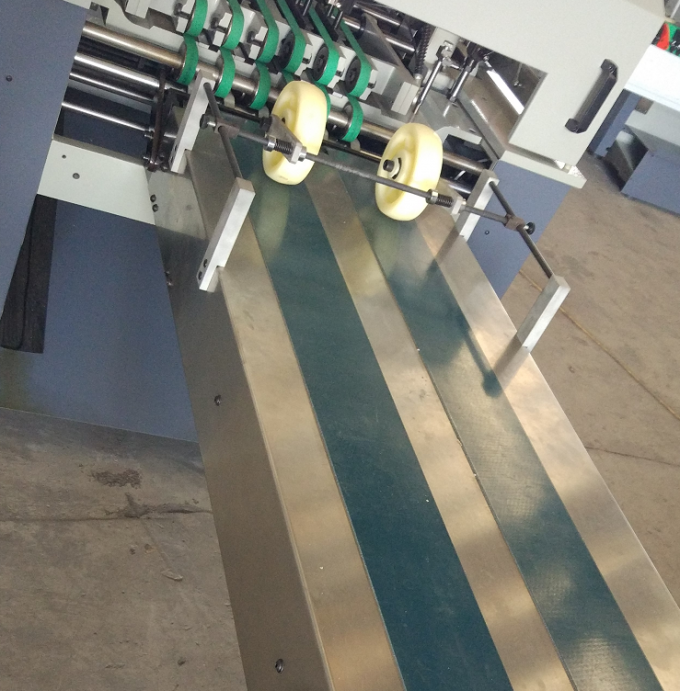

Book Collection Table

Comes standard with a straight-line book collection table with counting and book separation functions.The number of books per stack can be set as needed for easy collection.An optional stacker can replace the straight-line book collection table.

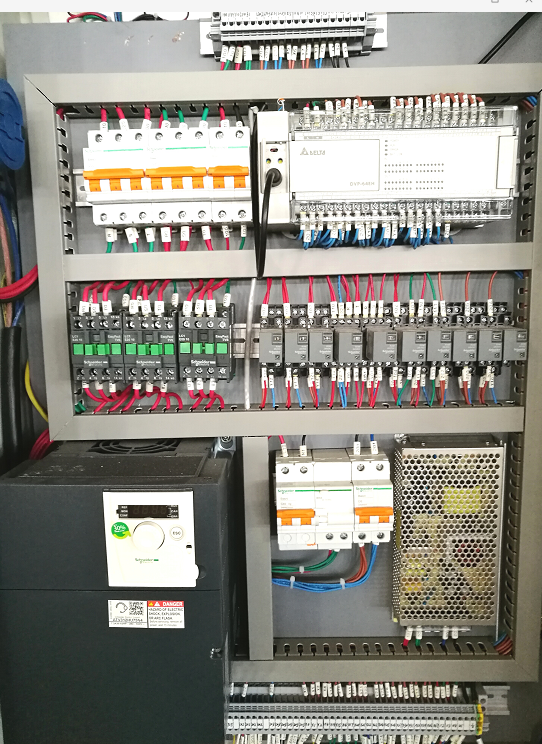

Electrical Control System
1.Centralized control system with touchscreen.
2.Main motor frequency conversion adjustment and PLC control system.
3.French Schneider frequency converter.
4.Japanese OMRON limit switches and American Banner sensors.
5.Stop buffer function.
6.Displays speed,total output,and total running time.
7.Pre-set function for book separation quantity.
8.Stable and reliable electrical program.
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 10
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 11
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 12
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 13
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 14
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 15
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 16
PRY-8D Gathering and Book Saddle Stitching and Trimming Machine 17
