Name: FG-50 Big Paper Bowl Cup Lid Forming Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: FG-50
Price: 26500 USD
Availability: InStock

FG-50 Big Paper Bowl Cup Lid Forming Machine

基本情報

起源の場所:	中国
ブランド名:	PRINTYOUNG
証明:	CE
モデル番号:	FG-50

最小注文数量:	1セット
価格:	USD 26500 Set
受渡し時間:	30営業日
支払条件:	LC、T/T
供給の能力:	月額30セット

接触

適したペーパー:	片面および両面PEコート紙、光沢コート紙	紙の重量:	250～350gsm
ふたの直径:	100～200mm	蓋の高さ:	10～15mm
スピード:	40～60個/分	電源:	AC380V 三相 50Hz
総電力:	15 kW	重さ:	4000 kg
機械のサイズ:	280022002200mm	空気要件:	消費量0.02m3/分、圧力：0.5MPa

FG-50 Big Paper Bowl Lid Forming Machine

Features

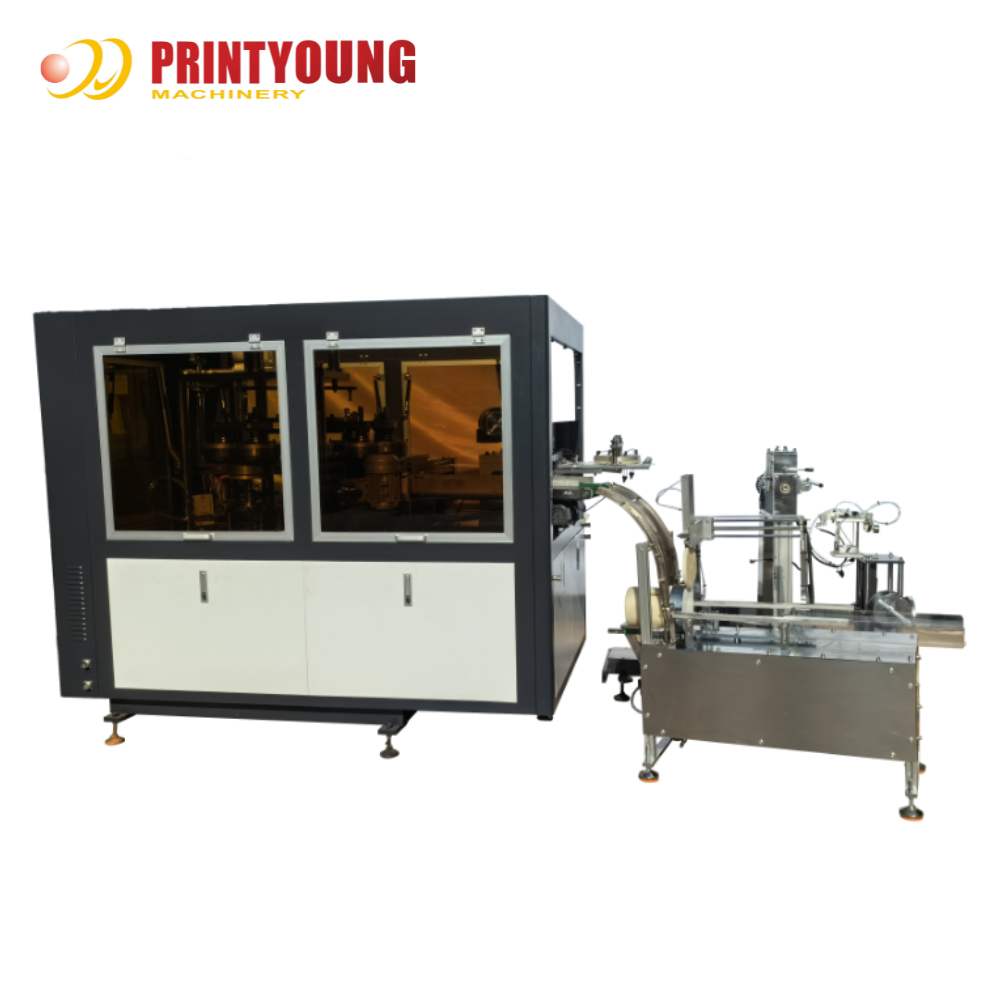

FG-50 paper lid machine is our patent machine,which make paper lid,paper cover.
It’s an automatic machine with the functions:
Automatic roll paper feed,creasing(make the forming guide line),emboss(can make emboss ,logo),cross cut(make hole for straw),punching(punch the roll paper to lid open disc),auto feed disc to mold,heating,folding,knurling,and discharge,with convey and counter for collection.

Advantage:
* Patent equipment,high speed.
* Feed roll paper.
* Auto creasing(guide line).
* Auto emboss(logo and shape on lid top,also make cross cut).
* Auto punching(cut roll paper to lid disc).
* Lid made by one paper disc,save cost.
* PLC control + servo motor feed paper.
* Open cam + shaft + cam + gear control movement,stable and reliable.

Technical Parameters

Suitable Paper	one & two side PE coated paper,glossy coated paper
Paper Weight	250 ~ 350 gsm
Lid Diameter	100 ~ 200 mm
Lid Height	10 ~ 15 mm
Speed	40 ~ 60 pcs/minute
Power Source	AC 380V 3-phase , 50Hz
Total Power	15 kw
Weight	4000 kg
Machine Size	2800 * 2200 * 2200 mm
Air Requirement	consumption 0.02 m³/minute , pressure : 0.5 MPa
