TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity

TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity
基本情報
起源の場所: 中国
ブランド名: PRINTYOUNG
証明: CE
モデル番号: TC-1080A
最小注文数量: 1セット
価格: USD 43000 Set
パッケージの詳細: 長距離の道路輸送や様々な気象条件に適した防湿・耐衝撃梱包を採用しています。メンテナンスと操作マニュアルの完全なセットが含まれています。
受渡し時間: 40日
支払条件: LC、T/T
供給の能力: 月30セット
接触
段ボールの重量: 200〜1000 g/m² 1時間あたりの出力: 6000個
最大 カードボードサイズ: 650*1080mm ミニ カードボードのサイズ: 190*150mm
最高。窓のサイズ: 380*400mm 最少窓のサイズ: 50*60mm
正確さ: ±0.5mm 膜厚: 0.10～0.25mm
接続された負荷: 9つのKw 重さ: 3800 KG

TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 0

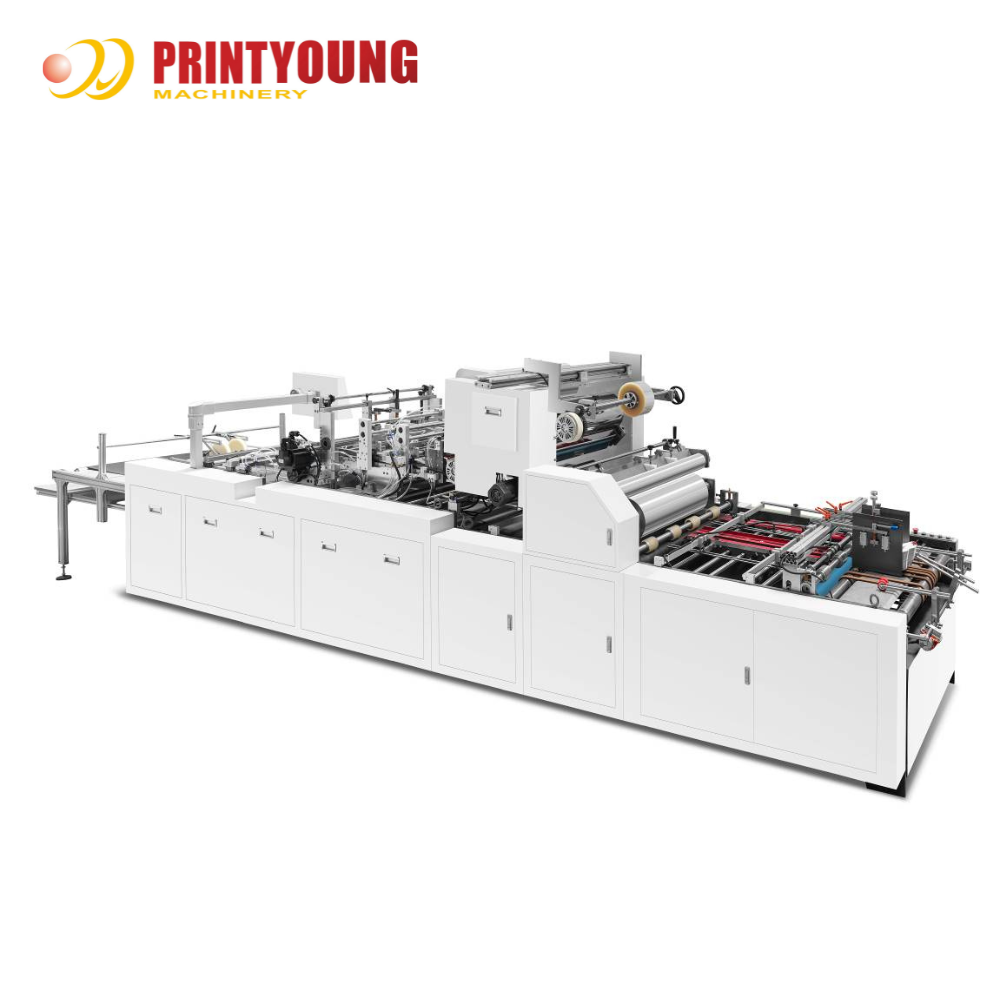

TC-1080A Automatic Window Patching Machine
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 1
Features
Full automatic window patching machine is used for patching window by film on paper.It can accept PP film,PET film,PVC film and so on.Its max capacity is 17000 pieces for one hour.It can produce tissue boxes,gift boxes,toy boxes,shirt boxes,milk cartons and other window boxes.
Technical Parameters
TC-1080A Automatic Window Patching Machine
Model
TC-1080A
Cardboard Weight
200 ~ 1000 g/m²
Output per Hour
6000 pieces
Size Range of Cardboard
Min. 190 * 150 mm Max. 650 * 1080 mm
Size Range of Window
Min. 50 * 60 mm Max. 380 * 400 mm
Accuracy
± 0.5 mm
Film Thickness
0.10 ~ 0.25 mm
Connected Load
9 kw
Weight
3800 kg
Dimensions
7000 * 1500 * 1600 mm
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 2TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 3
Configuration
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 4TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 5TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 6

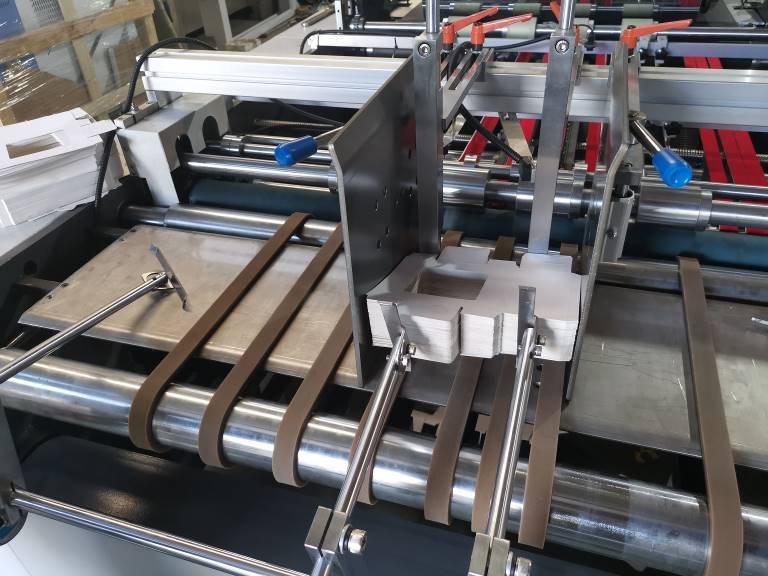

The paper feeder is controlled by servo motor,the belt is from Poland.No-stop feeding paper,no overlapping paper or missing paper.

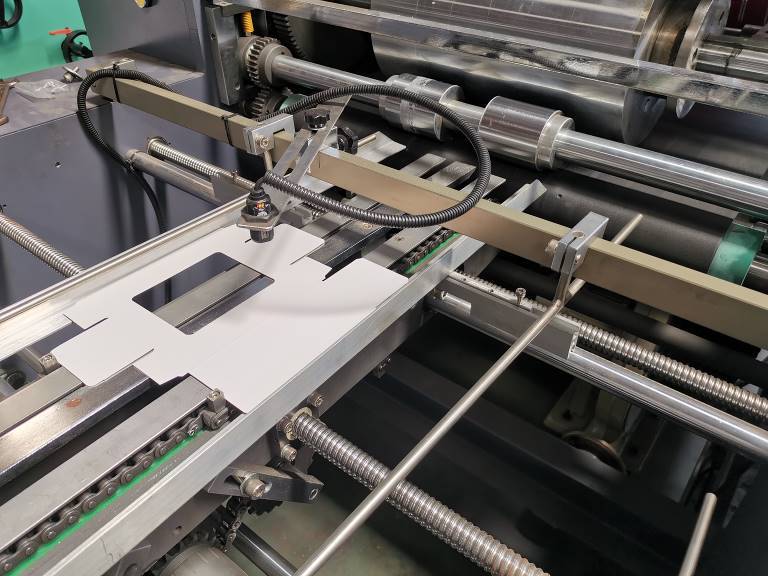

The paper moving system adopt pushing chain and air sucking belt.They have positioning function,insure the paper comes same place in same time.
Glue part adopt flexo printing technology.We can adjust the place of glue on the paper without any stop.When missing paper,glue part will up in case of the glue leaves on the air sucking belt.
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 7TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 8TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 9TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 10

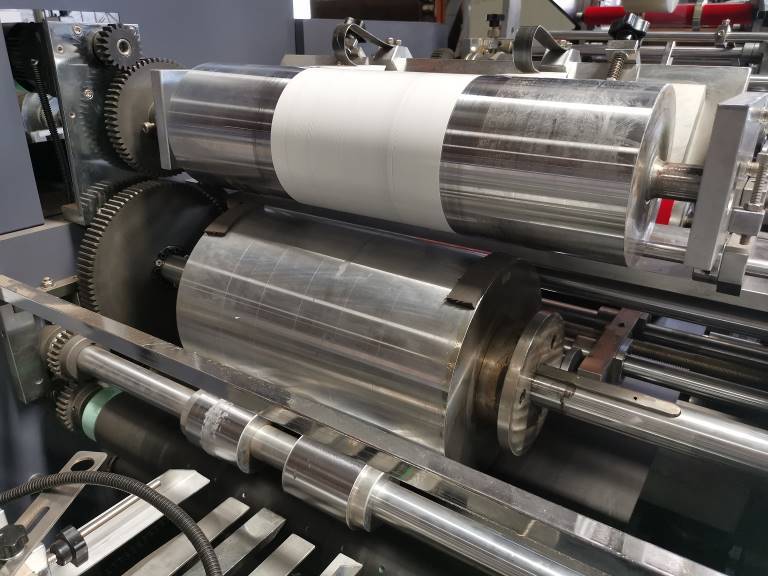

Film cutting part adopt our patented technology and design.The film length is controlled by servo motor in PLC.The place of paper is controlled by cylinder.Because of this set of design,the accuracy is ±0.5mm.There are letter embossing function,heating roller section function,print register camera sensor function for option.
Applications
Punch & crease window patching machine is widely used for patching the window on the liquor box,gift box,cosmetic box,toy box and so on.It has punching and creasing function, special for corner window.It is the best machine for patching corner window.
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 11TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 12
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 13
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 14
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 15
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 16
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 17
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 18
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 19
